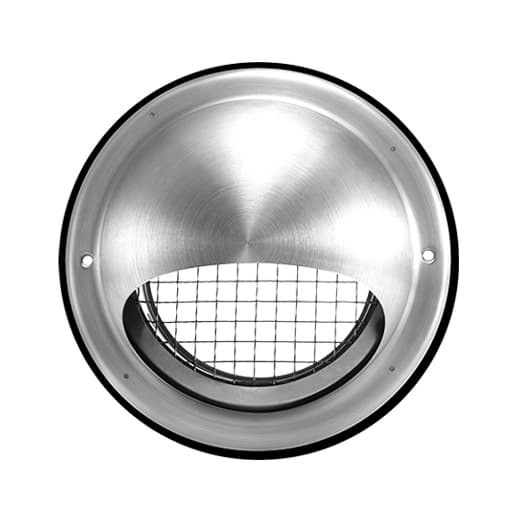

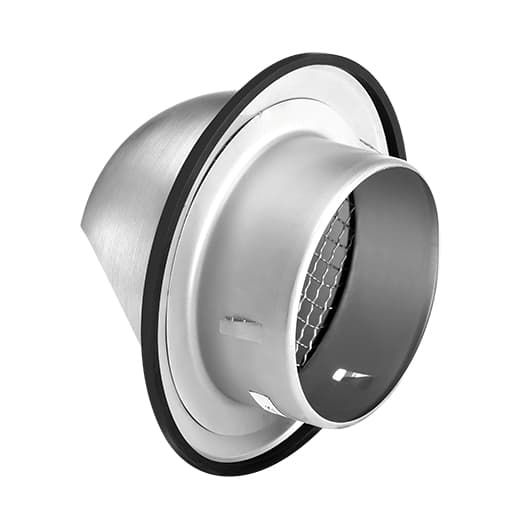

The SV-series appearance is the same as SUS-series.It's inside design with stainless steel insect screen,the large opening to easy eliminate clogging.
>>>
Material: Stainless steel 304/2B
All productsVantell Product System
SV-series
The SV-series appearance is the same as SUS-series.It's inside design with stainless steel insect screen,the large opening to easy eliminate clogging.
Product Overview
Technical Data
| Model | Product size | |||
| D(mm) | D1(mm) | L(mm) | Air Flow(c㎡) | |
| SV-100 | 97 | 133 | 52 | 48 |
| SV-125 | 120 | 165 | 52 | 82 |
| SV-150 | 145 | 190 | 62 | 126 |
| SV-160 | 155 | 190 | 62 | 135 |
| SV-180 | 175 | 253 | 73 | 152 |
| SV-200 | 195 | 253 | 72 | 178 |
Drawing：
>>>
System Note: For best long-term performance, this product should be used as part of a complete Vantell building envelope moisture management system.
Key Applications
- Wall Vent
- Building envelope construction
- Project-specific applications
