Building envelope systems in real construction conditions.
See how Vantell products are combined in practical wall, roof and opening details, from WRB continuity and rainscreen drainage to insulated panels and flashing tape applications.
High-Performance Modular Building Envelope with Vantell Double-Reflective Rainscreen System
A 2025 modular building project integrating Vantell reflective cladding, rainscreen drainage and ventilation, reflective WRB, interior vapor control and sealing technologies into one factory-assembled building envelope system. Originally developed for a mobile healthcare application, the envelope strategy was designed to manage heat, rainwater, moisture and air leakage while remaining adaptable to a wide range of modular and transportable buildings.

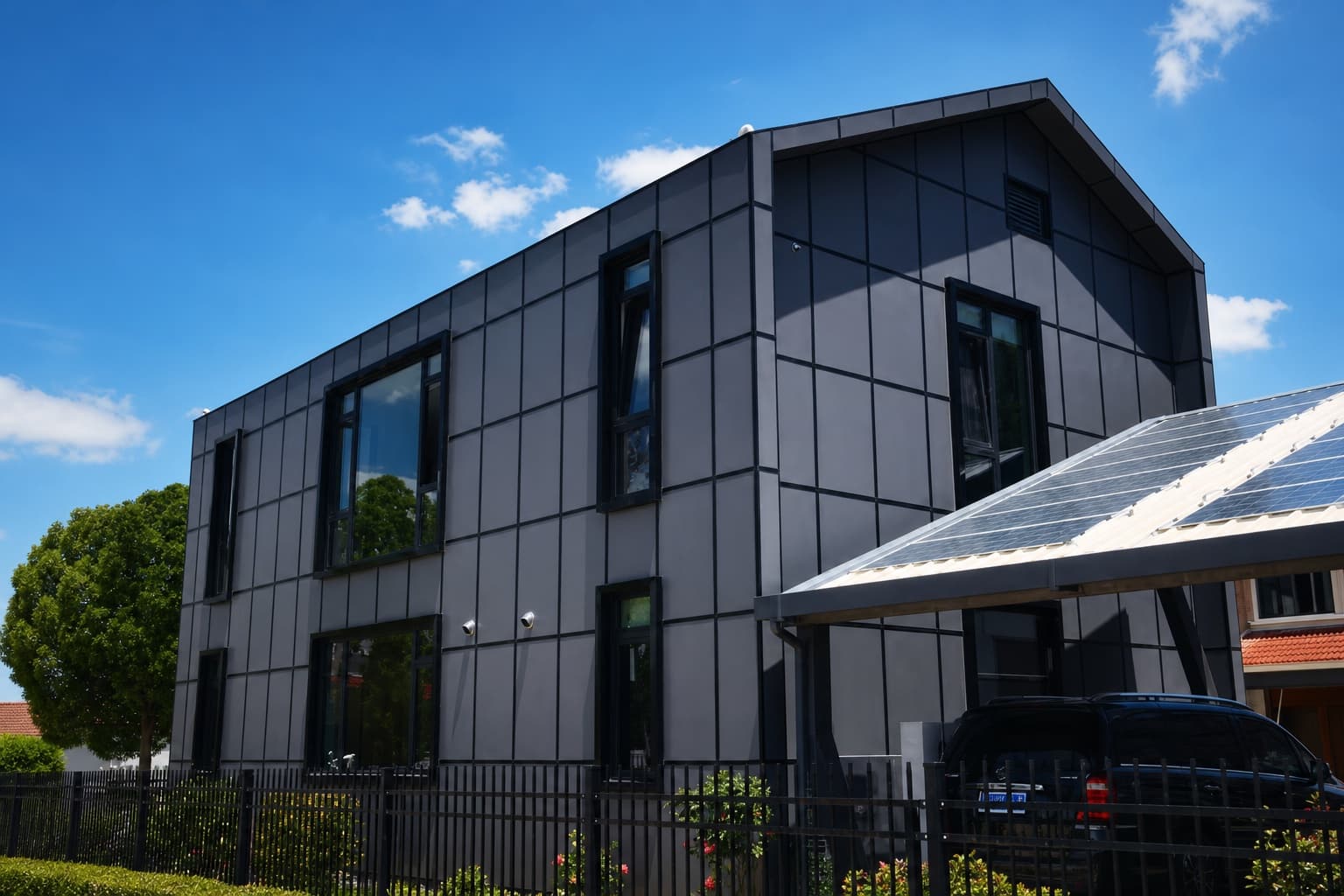

Qujing Off-Grid Net-Zero Energy Office
Completed in 2022 in Qujing, Yunnan, this office combines a demand-reducing Vantell envelope with facade-integrated BIPV and rooftop photovoltaics. With no utility-grid connection and no grid import or export, the building supports day-to-day office operation and EV charging within its own on-site energy boundary.

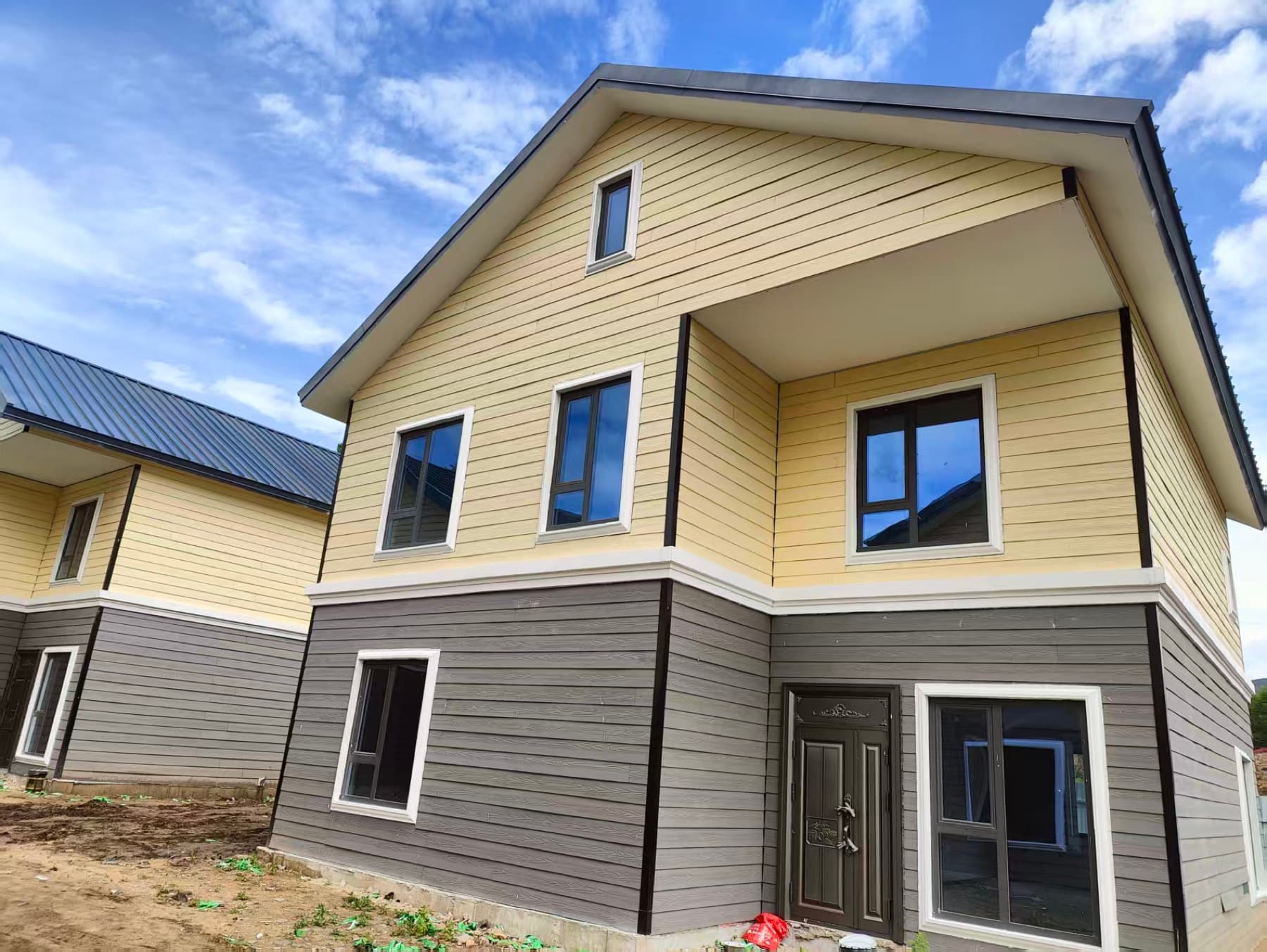

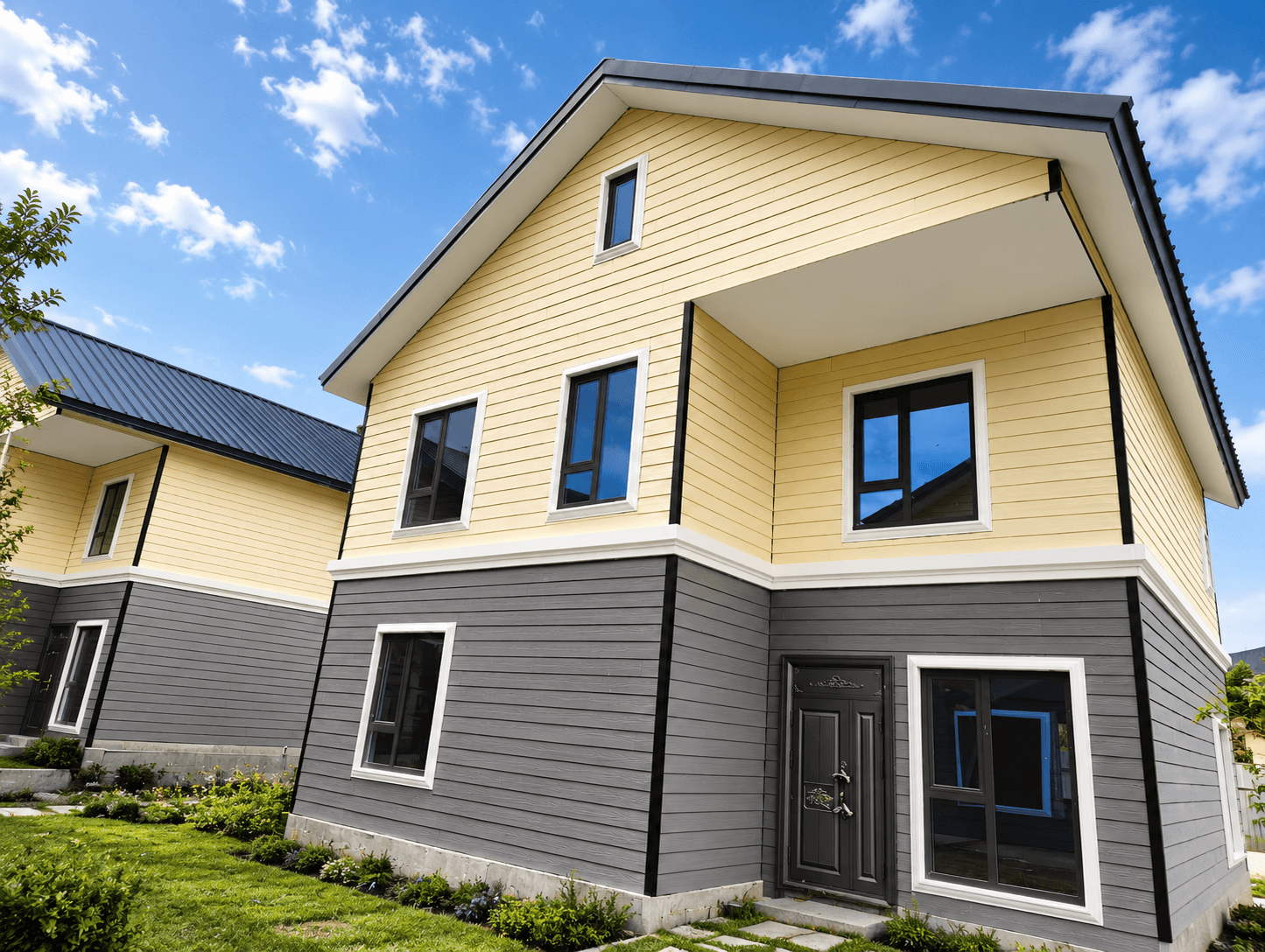

Weichang Complete Building Envelope System
A 2025 cold-region low-rise building envelope project in Weichang, Hebei, China. Vantell provided building envelope system support and overall technical solution support, using a coordinated wall and roof package including VWC523SA self-adhered housewrap, VRS523101 rainscreen drainage layer, MGO-PIR-MGO insulated panels, VSST seam sealing tape, VWFAXW window flashing tape, Corner Guard components, VFSP fastener sealing patches and VSRU15500 roof underlay.
Planning a wall or facade system?
Send your project type, climate, substrate and target performance. We can help identify a practical Vantell system direction.
