All productsVantell Product System

Vgelo@Wrap Commercial VWC323

Vantell VWC323 Housewrap is a vapor-permeable water-resistive barrier designed for use behind stucco, stone veneer, and traditional exterior wall cladding systems. It helps resist bulk water intrusion while allowing the

Product Overview

Vantell VWC323 Housewrap is a vapor-permeable water-resistive barrier designed for use behind stucco, stone veneer, and traditional exterior wall cladding systems. It helps resist bulk water intrusion while allowing the wall cavity to breathe and dry.

With reliable water resistance, vapor permeability, Class A fire resistance, and 120-day UV stability, VWC323 provides durable and practical protection for professional builders and exterior wall applications.

Product Information

ModelVWC323
Width × Length1.524 m × 30.48 m
Package72 rolls / pallet

Key Benefits

  • Helps resist water intrusion behind exterior cladding systems

  • Allows vapor diffusion to support wall drying performance

  • Suitable for stucco, stone veneer, and traditional exterior wall assemblies

  • Class A fire resistance for enhanced building envelope safety

  • 120-day UV stability for practical jobsite exposure protection

Technical Data

Water Vapor Permeance19 perms   ASTM E96
Water Resistance AC38No water leakage, 55 cm hydrostatic head for 5 hours   AATCC 127
Dry Breaking Force        MD: 280 N
>>>        CD: 202N   ASTM D5034
Air Permeance
UV Resistance120 days
System Note: For best long-term performance, this product should be used as part of a complete Vantell building envelope moisture management system.

Key Applications

  • Stucco wall assemblies
  • Stone veneer exterior walls
  • Traditional exterior wall systems
  • Water-resistive barrier behind cladding
  • Residential and light commercial building envelope protection

Installation Examples

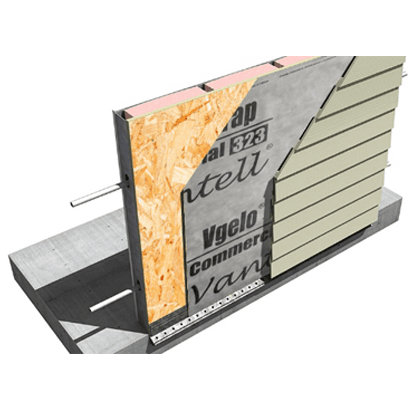

Installation example

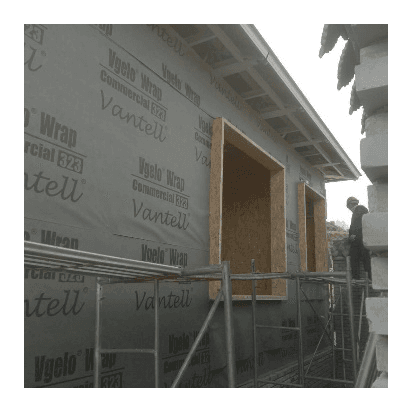

Installation example
