This undereave vent is circle.The material is aluminum.Surface is spray treatment.

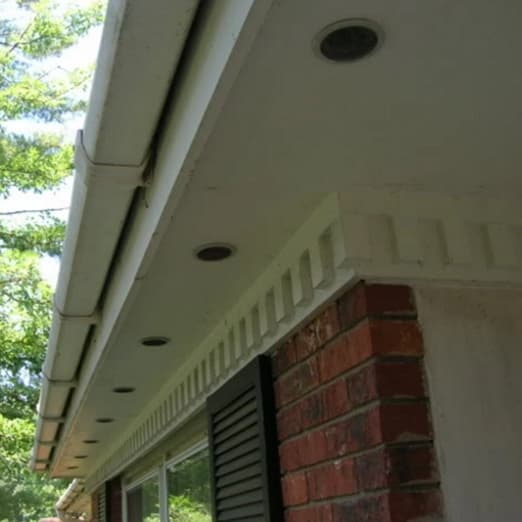

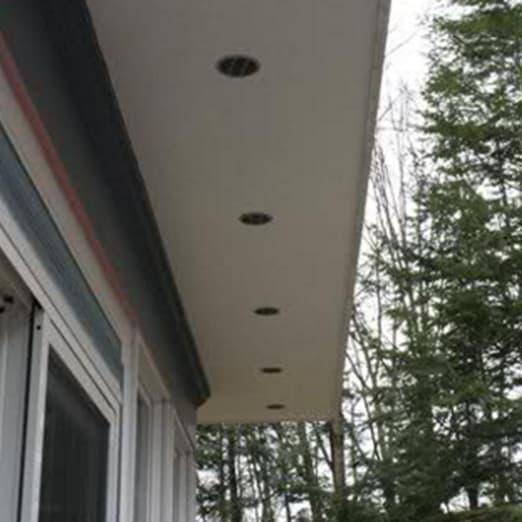

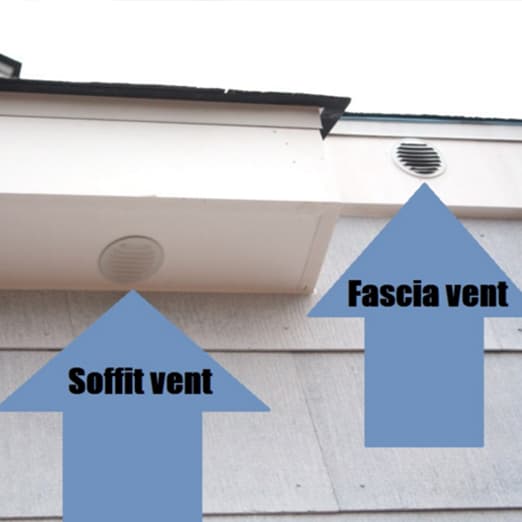

This undereave vent is circle.The material is aluminum.Surface is spray treatment. The end of model is without alphabet,the colour is metallic colour.The end of model is "w".the colour is white.The end of model is "B",the colour is brown.To use for sidewall and under eave ventilation.The louvers deflect rain or snow.As the part of a balanced ventilation system can reduce unwanted heat and moisture.The size is complete to apply for all kinds of eave.
>>>
Material: Aluminum
| Model | Product size | ||
| D (mm) | L(mm) | Air Flow (cm2 ) | |
| ASE1 / ASE1W / ASE1B | 25 | 24 | 2 |
| ASE2 / ASE2W / ASE2B | 51 | 24 | 10 |
| ASE3 / ASE3W / ASE3B | 75 | 24 | 18 |
| ASE4 / ASE4W / ASE4B | 101 | 24 | 24 |
Drawing：
>>>
>>>
SUS-series appearance is accepted by the public. It's inside design with ouver blade and insect screen to avoid birds and rodents. Material: Stainless steel 304/2B
View product ↗
The SV-series appearance is the same as SUS-series.It's inside design with stainless steel insect screen,the large opening to easy eliminate clogging.
View product ↗
The SUC-series like the appearance of SUS-series,the inside structure is the same as SUA-series, to offer anti draught cowl attachment to prevent return air.
View product ↗
