LMA-series is our specially designed. It's the retro style both beautify wall and ventilation function.
The material is aluminum. The surface can be painted.
All productsVantell Product System
LMA-series
LMA-series is our specially designed. It's the retro style both beautify wall and ventilation function.
Product Overview
Technical Data
| Model | Product size | |||
| D(mm) | D1 (mm) | L(mm) | Air Flow(c㎡) | |
| LMA-100 | 97 | 140 | 52 | 45 |
| LMA-125 | 120 | 178 | 52 | 67 |
| LMA-150 | 145 | 178 | 62 | 115 |

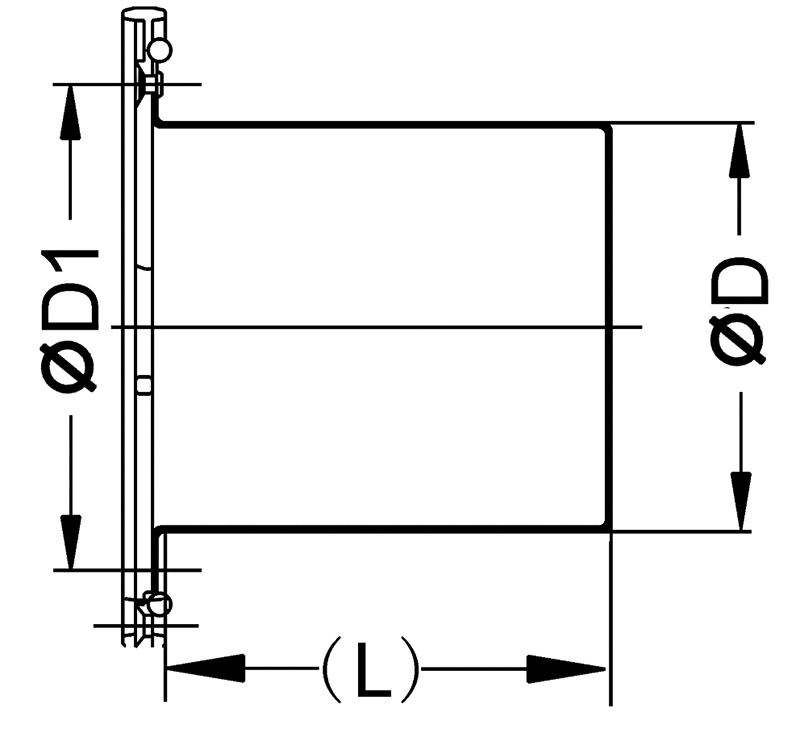

Drawing：
>>>
System Note: For best long-term performance, this product should be used as part of a complete Vantell building envelope moisture management system.
Key Applications
- Wall Vent
- Building envelope construction
- Project-specific applications

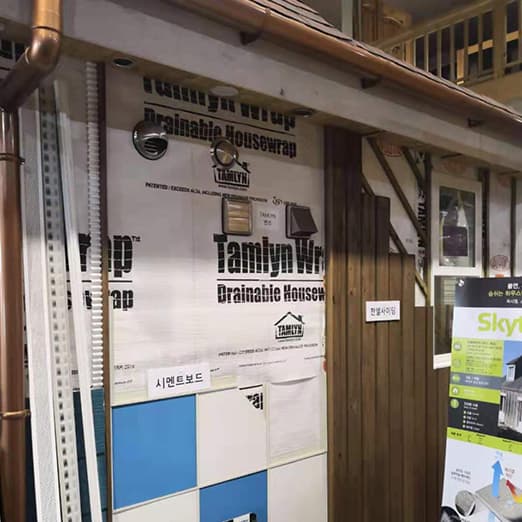

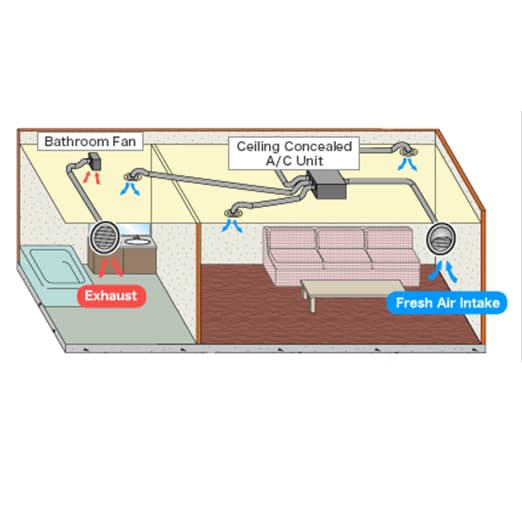

Installation Examples
