SUE-series production process is complex.By adopting whole shaped technology,no welding, the product has the characteristic of high intensity and durability. The louver is in the concave part to reduce the risk of deform
SUE-series production process is complex.By adopting whole shaped technology,no welding, the product has the characteristic of high intensity and durability. The louver is in the concave part to reduce the risk of deformation because of external force.
>>>
Material: Stainless steel 304/2B
| Model | Product size | |||
| D(mm) | D1 (mm) | L(mm) | Air Flow(c㎡) | |
| SUE-100 | 95 | 133 | 22 | 57 |
| SUE-125 | 112 | 165 | 24 | 93 |
| SUE-150 | 114 | 190 | 26 | 138 |

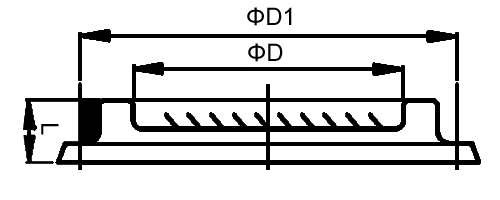

Drawing：
>>>
SUS-series appearance is accepted by the public. It's inside design with ouver blade and insect screen to avoid birds and rodents. Material: Stainless steel 304/2B
View product ↗
The SV-series appearance is the same as SUS-series.It's inside design with stainless steel insect screen,the large opening to easy eliminate clogging.
View product ↗
The SUC-series like the appearance of SUS-series,the inside structure is the same as SUA-series, to offer anti draught cowl attachment to prevent return air.
