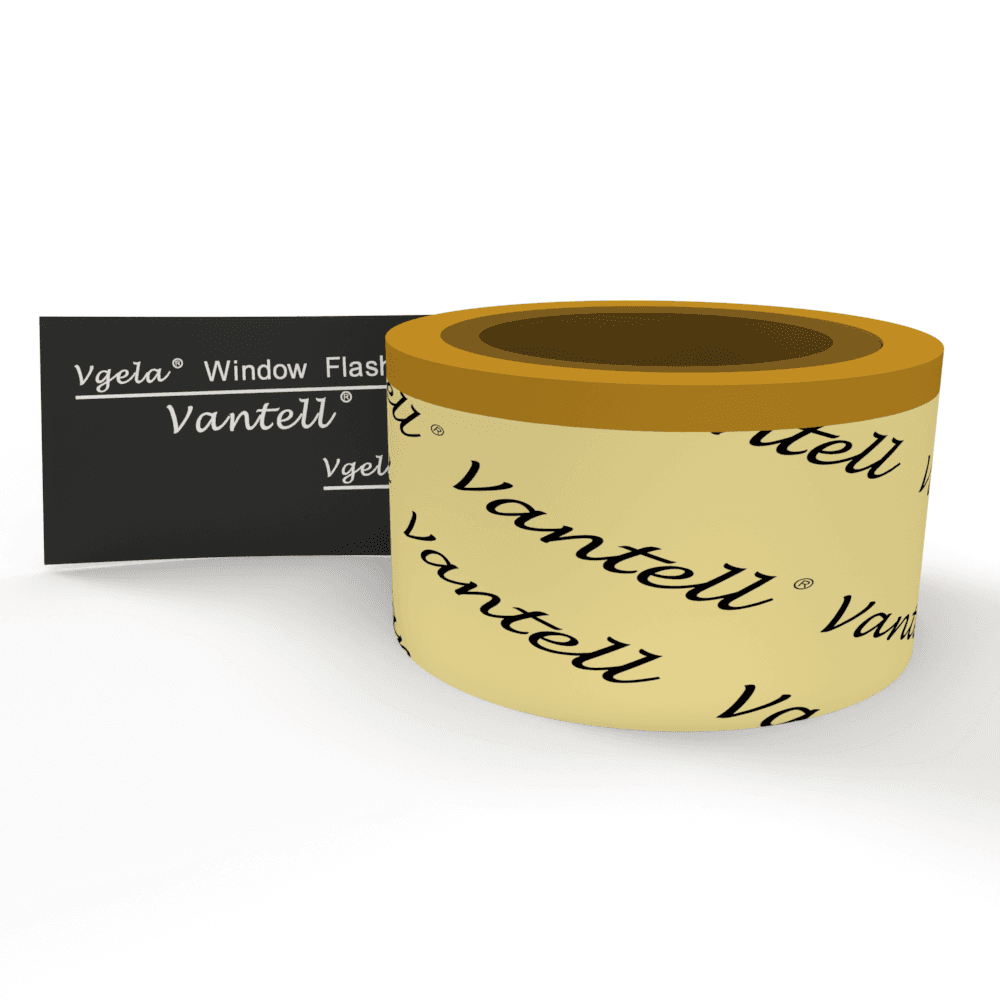

VWFHYP Series Butyl Vapor Permeable Tape is a premium self-adhesive exterior sealing tape designed for window and door openings in low-energy and high-performance building envelopes. Applied to the outside of windows and doors, it helps block liquid water intrusion while allowing trapped moisture vapor to escape from the wall assembly.
As an external vapor-permeable flashing tape, VWFHYP supports outward drying and helps reduce condensation risk around window and door details. It is especially suitable for European low-energy window installation methods where the exterior side must remain weather-resistant, airtight, and vapor-open.
For improved installation flexibility, VWFHYP can be supplied with customized split release film configurations. A narrow self-adhesive strip on the reverse side can also be added upon request, allowing easier pre-fixing to window or door frames before final bonding to the surrounding wall substrate.
Product Information
| Product Series | VWFHYP Series |
| Product Type | Butyl vapor permeable tape / external window sealing tape |
| Material | Butyl |
| Typical Application Style | European low-energy window installation |
| Primary Function | Exterior waterproofing, airtightness, and outward vapor diffusion |
| Optional Configuration | Customized split release film and optional narrow reverse-side adhesive strip for frame pre-fixing |
Available Sizes
| Model | Specification | Package |
|---|---|---|
| VWFHYP-10023 | 0.10 m × 23 m | 6 rolls / ctn |
| VWFHYP-12023 | 0.12 m × 23 m | 5 rolls / ctn |
| VWFHYP-15023 | 0.15 m × 23 m | 4 rolls / ctn |
| VWFHYP-20023 | 0.20 m × 23 m | 3 rolls / ctn |
Key Benefits
Designed for exterior-side sealing around windows and doors
Blocks liquid water while allowing moisture vapor to escape
Helps reduce condensation risk around opening details
Supports European low-energy window installation methods
Improves continuity of the exterior weather-resistive barrier layer
Available with customized split release film for staged and easier installation
Optional narrow reverse-side adhesive strip for convenient pre-fixing to window and door frames
