VBT Series - Waterproof Butyl Tape

VBT Series Waterproof Butyl Tape is a heavy-duty self-adhesive butyl tape designed for universal flashing and waterproof sealing applications.

Product Overview

VBT Series Waterproof Butyl Tape is a heavy-duty self-adhesive butyl tape designed for universal flashing and waterproof sealing applications. Its conformable butyl adhesive helps seal complex geometries, joints, roof penetrations, wall transitions, and other demanding outdoor building envelope details.

With strong adhesion, excellent flexibility, and reliable water resistance, VBT provides immediate and durable watertight protection across a wide range of substrates and construction details. It is suitable for waterproofing, flashing, and critical-detail sealing where long-term moisture protection is required.

Product Information

Product SeriesVBT Series
Product TypeWaterproof butyl flashing tape
MaterialButyl
Application SystemWaterproof flashing & butyl sealing system
Primary FunctionWaterproofing, flashing, joint sealing, and critical-detail protection

Available Sizes

ModelSpecificationPackage
VBT-100230.10 m × 23 m6 rolls / ctn
VBT-150230.15 m × 23 m4 rolls / ctn
VBT-225230.225 m × 23 m3 rolls / ctn
VBT-300230.30 m × 23 m2 rolls / ctn

Key Benefits

  • Heavy-duty butyl tape for waterproof flashing and sealing

  • Conformable adhesive for complex shapes, corners, and transitions

  • Suitable for roof penetrations, wall joints, terraces, and outdoor details

  • Provides immediate watertight protection after installation

  • Strong adhesion to waterproof membranes, cement mortar board, and pre-painted steel plate

Technical Data

Test ItemStandard / MethodSubstrate / ConditionTest Result
Material--Butyl
Tack RetentionJC/T 942-2004Requirement: ≥ 20 minNo slipping or detachment
Heat ResistanceJC/T 942-200480°C, 2 hNo bleeding, no cracking, no deformation
Low Temperature FlexibilityJC/T 942-2004-40°CNo cracks
180° Peel AdhesionJC/T 942-2004Waterproof membrane; requirement: ≥ 0.4 N/mm0.73 N/mm
180° Peel AdhesionJC/T 942-2004Cement mortar board; requirement: ≥ 0.6 N/mm1.30 N/mm
180° Peel AdhesionJC/T 942-2004Pre-painted steel plate1.60 N/mm
Peel Adhesion after Heat AgingJC/T 942-2004Waterproof membrane; 80°C, 168 h1.45 N/mm
Peel Adhesion after Heat AgingJC/T 942-2004Cement mortar board; 80°C, 168 h1.04 N/mm
Peel Adhesion after Heat AgingJC/T 942-2004Pre-painted steel plate; 80°C, 168 h0.92 N/mm
Water Immersion AdhesionJC/T 942-2004Waterproof membrane; water immersion, 168 h1.99 N/mm
Water Immersion AdhesionJC/T 942-2004Pre-painted steel plate; water immersion, 168 h1.38 N/mm
System Note: For best long-term performance, this product should be used as part of a complete Vantell building envelope moisture management system.

Key Applications

  • Roof penetrations and flashing details
  • Wall joints and waterproofing transitions
  • Terraces and outdoor sealing applications
  • Complex geometry sealing around building envelope details
  • Universal waterproof butyl flashing and sealing

Installation Examples

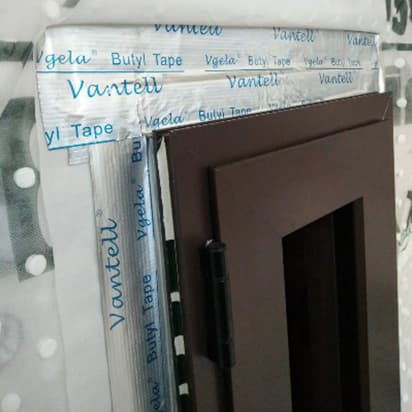

Installation example
